Bonded Washer - BSPP (RS Gasket) (Ref. 9900)
Bonded Washer - BSPP (RS Gasket) (Ref. 9900)
 (Ref. 9900).png)
Tube Fittings
- Features: RS gasket provides a seal with male BSP/ISO parallel thread.

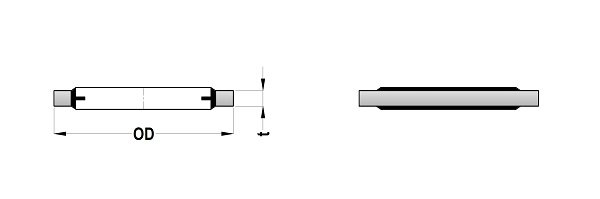

| RADILOK Part Number | T (BSPP) | OD (mm) | t (mm) |
|---|---|---|---|
| 2G-BW-SCL | 1/8" | 15.9 | 2.0 |
| 4G-BW-SCL | 1/4" | 20.6 | 2.0 |
| 6G-BW-SCL | 3/8" | 23.8 | 2.0 |
| 8G-BW-SCL | 1/2" | 28.6 | 2.5 |
| 10G-BW-SCL | 5/8" | 31.7 | 2.5 |
| 12G-BW-SCL | 3/4" | 34.9 | 2.5 |
| 16G-BW-SCL | 1" | 42.8 | 3.4 |
| 20G-BW-SCL | 1.1/4" | 52.4 | 3.4 |
| 24G-BW-SCL | 1.1/2" | 58.6 | 3.4 |
| 32G-BW-SCL | 2" | 73.0 | 3.4 |
