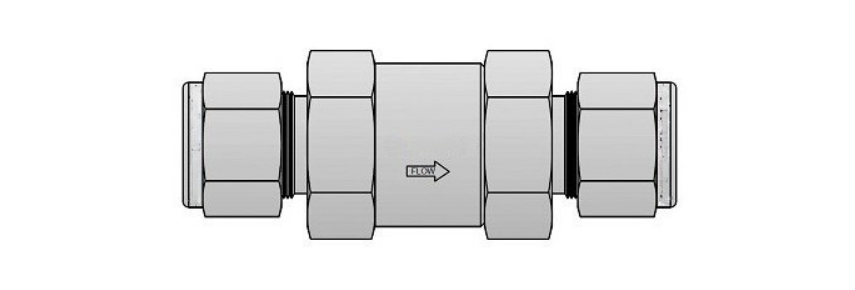

Check Valve - RADILOK Tube OD X Tube OD
Check Valve - RADILOK Tube OD X Tube OD
.png)
Application:
- These valves are used in process control, instrumentation and flow control applications.
- ABCD
Specifications:
- Standard pressure rating up to 6000 psi (413 bars).
- Each valve is 100% factory tested for cracking pressure & reseal.

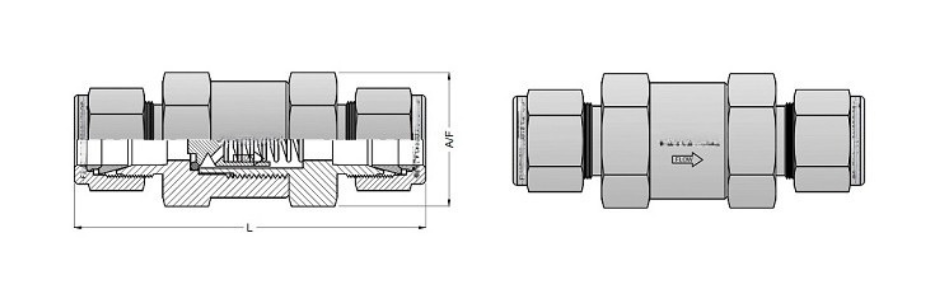

Check Valve - RADILOK Tube OD X Tube OD
| RADILOK Part Number | Inlet End Connection | L (mm) | A/F (mm) | |
|---|---|---|---|---|
| Inlet | Outlet | |||
| CV-2T | 1/8" | 1/8" | 69 | 19.0 |
| CV-4T | 1/4" | 1/4" | 72 | 19.0 |
| CV-6T | 3/8" | 3/8" | 74 | 19.0 |
| CV-8T | 1/2" | 1/2" | 79 | 22.0 |
| CV-12T | 3/4" | 3/4" | 106 | 32.0 |
| CV-16T | 1" | 1" | 118 | 35.0 |
