Single Ferrule
Single Ferrule
Tube Fittings
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8" to 2" & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: RADILOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes

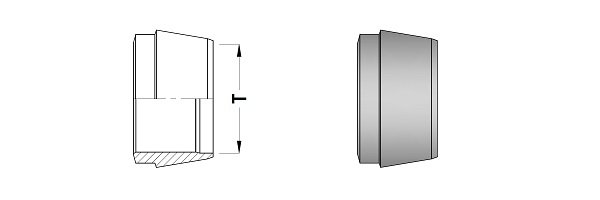

| RADILOK Part Number | T (Tube OD) |
|---|---|
| 4-SF | 1/4" |
| 5-SF | 5/16" |
| 6-SF | 3/8" |
| 8-SF | 1/2" |
| 10-SF | 5/8" |
| 12-SF | 3/4" |
| 16-SF | 1" |
Metric Tubes
| RADILOK Part Number | T (Tube OD) |
|---|---|
| 6M-SF | 6mm |
| 8M-SF | 8mm |
| 10M-SF | 10mm |
| 12M-SF | 12mm |
| 16M-SF | 16mm |
| 18M-SF | 18mm |
| 22M-SF | 22mm |
| 25M-SF | 25mm |
