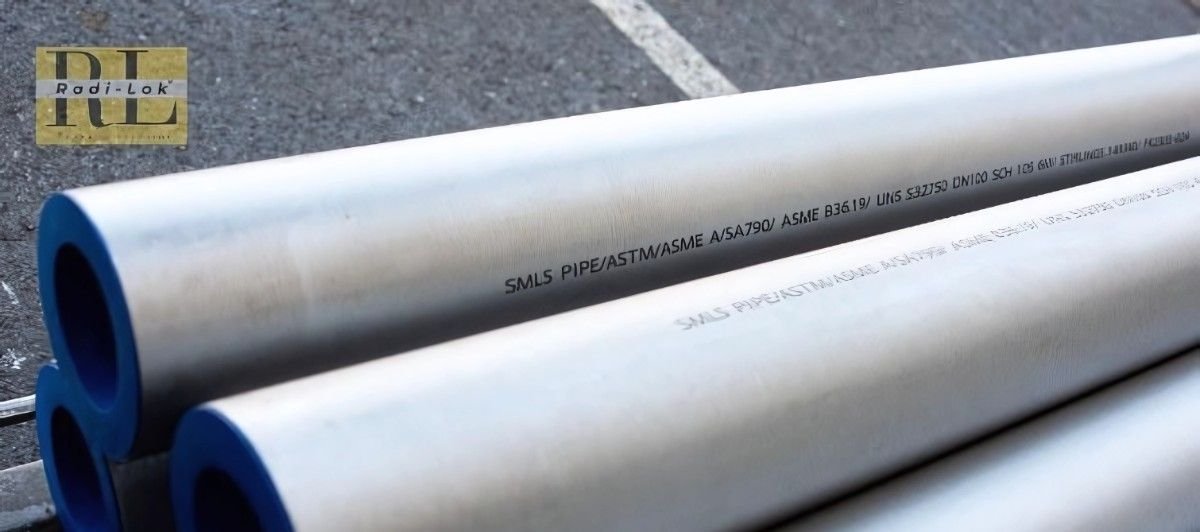

Super Duplex Stainless Steel Seamless Pipe manufacturer in India, view Super Duplex Tube Price
Super Duplex Seamless Pipe is used in oil and gas industries and also in wells with high brine levels that occur naturally or where brine solution has been injected to enhance recovery. Super Duplex Tube also offers high strength along with resistance to corrosion fatigue and erosion. Astm A790 S32750 Pipe is also said to be resistant to uniform corrosion that might occur due to the presence of organic acids such as acetic and formic. Astm A790 Super Duplex Stainless Steel Seamless Pipes display high thermal conductivity and high energy absorption. Moreover, Super Duplex Hollow Pipe also offers good workability and weldability.
Werkstoff Nr. 1.4410 Pipe distortion is lower with the application of heat. Distortion in Super Duplex Tubing can lead to ill-fitted flanges or connections. 2507 Super Duplex Tubing is used in chemical processing, offshore oil and gas processing, and heat exchangers in the petrochemical industry. 2507 Super Duplex Stainless Steel Tubes manufactured by us follow international standards. Our Super Duplex 2507 Seamless Tubing is supplied to various companies across the globe.
Duplex Stainless Steel Pipe Information
General Information
| Super Duplex Stainless Steel Pipe Price in India |
| What is Super Duplex 2507 Pipe ? |
| Specification format of Super Duplex Seamless Pipe |
| Super Duplex 2507 Pipe Manufacturer in India |
| Super Duplex Welded Pipe Schedule Chart |
| Astm A790 S32750 Pipe Weight Chart |
| Super Duplex Tubing Size Chart |
Technical Specifications
| Super Duplex Hollow Pipe Pressure Rating |
| Size Chart of Astm A790 Super Duplex Stainless Steel Seamless Pipes |
| Super Duplex 2507 Seamless Tubing Chemical Formula |
| Alloy 2507 Super Duplex Tubing Equivalent Grades |
| 2507 Super Duplex Stainless Steel Tubes Mechanical Strength |
We Keep Bulk Stock of Astm A790 S32750 Hollow and Bush Hex Pipe at our stockyard, contact us to request a quote
Duplex Stainless Steel Pipe Specification
| Specifications |
ASTM A928 / ASME SA 928 ASTM A790 / ASME SA 790 ASTM A789 (duplex 2205, 31803 alloy 2205, 00Cr 22Cr) ASTM A790 / ASME SA 789 |
|---|---|
| Pipe Thickness | 3 mm - 50 mm |
| Pipe Standard | ASTM, ASME, EN, JIS, DIN Duplex 2205 Pipe Supplier |
| Duplex 2205 Seamless Pipe Outer Diameter | 6.0 mm to 114.3 mm - 250 mm OD |
| Duplex 2205 Welded Pipe size | 5.0 ID to 1219.2 mm |
| Duplex 2205 Welded Tube Size | 8.3 ~ 152 mm OD |
| Duplex 2205 ERW Pipe OD | 5.0 - 1219.2 mm |
| Duplex 2205 tubing wall thickness | 0.020" to 0.220" (custom wall thickness available) |
| Duplex 2205 Seamless Tube size | 6.0 mm OD to 114.3 mm / 7.35 to 114.8 mm OD |
| Duplex 2205 Pipe & Tube Finish | AP (Annealed & Pickled), Polished, MF, BA (Bright & Annealed), NO.4, NO.8, 2B, HL, Mirror, Unpolished |
| Pipe & Tube Spec & Size | 1/2 inch, 5/8 inch, 1.5 inch, 1/4 inch, 3/8 inch |
| Pipe & Tube Schedule | SCH10, SCH 5S, SCH 80, SCH 40, SCH 160, SCH XS, SCH XXS |
| Tube Type | Hydraulic, Round, Rectangular, Hollow, Form Tube Coils, Square, Coiled, "U" Shape, Straight Tube |
| Pipe Type | Hot & Cold length: Single and Double Random |
| Duplex 2205 Pipe Tube Type | Duplex 2205 Seamless / Welded / ERW / CEW / Fabricated / CDW / DOM Pipe |
| Pipe Value Added Services & Applications | Cut Pipe as per required Size & Length (Note & Expansion), Pickled Bending and Polish (Electro & Commercial), Annealed, Machining etc. |
| Duplex 2205 Tube Applications | Bendable, End Finish, and Threaded Pipe. |
| Pipe Marking | Marked as follows (All Duplex 2205 Pipes): Standard, Grade, Thickness, OD, Heat No. (Or Manufacturer’s Logo), Length, “MADE IN INDIA” |
| Material Test Certificates (MTC) |
Material Test Certificate (MTC) as per EN 10204/3.1B & EN 10204 3.2 Manufacturer Test Certificate IBR Certificate and Third Party Inspection Certificate (TPI) NACE MR0175 Certificate Raw Materials Test Report Heat Treatment Charts Bend Test Certificate from Govt. Approved Labs |
| Specialized in |
Duplex 2205 Tubes for Heat Exchanger & Condenser Tubes Duplex 2205 Capillary Tubes in Outer Odd Sizes Large Diameter Duplex 2205 Pipe |
Duplex 2205 Seamless Pipe Price List
| Description | Price |
|---|---|
| Duplex 2205 Seamless and Welded Stainless Steel Pipe | US $ 1100–2000 / Ton |
| Duplex 2205 Welded/Seamless Stainless Steel Pipe (Round/Square/Rectangle) | US $ 2200–3500 / kg |
| Duplex 2205 Seamless Stainless Steel Tube and Pipe | US $ 1400–12000 / Ton |
| Duplex Stainless Steel 2205 Seamless/ERW Welded Pipe Price Per Ton | US $ 1000–3000 / Ton |
| ASTM A790 Uns S31803 / Saf 2205 Duplex Seamless Tube Pipe | Min. Order: 1 pc |
| Duplex 2205 / Uns S31803 S31803 Stainless Steel Seamless Pipe | US $ 199 / Ton |
| S31803 2205 S32205 F51 1.4462 A240 A479 Duplex Stainless Steel Seamless Welded Pipe/Tube | US $ 1–12 / kg |
What is Duplex 2205 Pipe ?
Pipes and tubes made up of various materials are available in the market. Stainless Steel is the most common one that is available in ferritic and austenitic. Duplex 2205 Pipe is one such type that has a microstructure of both ferritic and austenitic. Duplex Stainless Steel 2205 Pipe has high strength, along with good impact toughness. Duplex Stainless Steel Pipe Manufacturer recommends these due to their resistance to local corrosion. It is not advisable to use Duplex 2205 Seamless Pipe at a temperature above 572 degrees F. when compared to other austenitic steel grade Duplex 2205 Tube displays superior corrosion resistance.
Supply Cut to length Astm A789 UNS S31803 seamless tube in all sizes and diameter as per Client requirement
Duplex 2205 Tube Size Chart
| Wall | Duplex Tube Sizes (OD) |
|---|---|
| .010 | 1/8", 1/16", 3/16" |
| .020 | 1/8", 1/16", 3/16", 1/4", 5/16", 3/8" |
| .012 | 1/8" |
| .016 | 1/8", 3/16" |
| .028 | 1/8", 3/16", 5/16", 3/8", 1/2", 3/4", 1", 2", 2 1/2" |
| .035 | 1/8", 3/16", 5/16", 1/4", 3/8", 1/2", 7/16", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/8", 2", 1 1/2", 2 1/4" |
| .049 | 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1 1/8", 1 1/2", 2", 2 1/2", 2 1/4" |
| .065 | 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1", 2", 2 1/2" |
| .083 | 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1", 2", 2 1/2" |
| .095 | 1/2", 5/8", 11/16", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 3/8", 1 5/8", 1 7/8", 2", 2 1/2", 3" |
| .250 | 3" |
| .120 | 1/2", 5/8", 3/4", 7/8", 1 1/4", 1", 2", 2 1/2", 2 1/4", 2", 2 1/2" |
| .375 | 3 1/2" |
| .134 | 1" |
| .109 | 1/2", 3/4", 1 1/4", 1", 2", 1 1/2" |
| .125 | 3/4", 1 1/4", 1", 2", 1 1/2", 3 1/4" |
Super Duplex Hollow Pipe Pressure Rating
| Pipe O.D. (In.) |
Wall Thickness Of Pipe (Inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .065 | .035 | .028 | .049 | .095 | .083 | .120 | .109 | |
| Working Pressure (Psig) | ||||||||
| 1/8 | 10100 | 7900 | ||||||
| 1/4 | 9500 | 4800 | 3700 | 7000 | ||||
| 5/16 | 7300 | 3700 | 5400 | |||||
| 3/8 | 6100 | 3100 | 4400 | |||||
| 1/2 | 4400 | 2300 | 3200 | |||||
| 3/4 | 3000 | 2200 | 4600 | 4000 | ||||
| 1 | 2200 | 3400 | 2900 | 4300 | 3900 | |||
Buy High-Grade Quality from 2507 Super Duplex Welded Pipe and High Pressure Tube Suppliers
Size chart of Astm A790 Super Duplex Stainless Steel Seamless Pipes
| OD mm |
Kg/m | in. | WT mm |
Sch |
|---|---|---|---|---|
| 13.072 | 0.050 | 1/4 | 1.065 | 10S |
| 13.072 | 0.064 | 1/4 | 2.024 | 40S |
| 13.072 | 0.081 | 1/4 | 3.002 | 80S |
| 17.015 | 0.064 | 3/8 | 1.065 | 10S |
| 17.015 | 0.086 | 3/8 | 2.031 | 40S |
| 17.015 | 1.012 | 3/8 | 3.020 | 80S |
| 21.034 | 1.002 | 1/2 | 2.011 | 10S |
| 21.034 | 1.029 | 1/2 | 2.077 | 40S |
| 21.034 | 1.065 | 1/2 | 3.073 | 80S |
| 26.067 | 1.030 | 3/4 | 2.011 | 10S |
| 26.067 | 1.071 | 3/4 | 2.087 | 40S |
| 26.067 | 2.023 | 3/4 | 3.091 | 80S |
| 33.040 | 2.013 | 1 | 2.077 | 10S |
| 33.040 | 2.054 | 1 | 3.038 | 40S |
| 33.040 | 3.029 | 1 | 4.055 | 80S |
| 33.040 | 4.030 | 1 | 6.0352) | 160 |
| 42.016 | 2.073 | 1¼ | 2.077 | 10S |
| 42.016 | 3.044 | 1¼ | 3.056 | 40S |
| 42.016 | 4.053 | 1¼ | 4.085 | 80S |
| 42.016 | 5.069 | 1¼ | 6.0352) | 160 |
| 48.026 | 3.016 | 1½ | 2.077 | 10S |
| 48.026 | 4.011 | 1½ | 3.068 | 40S |
| 48.026 | 5.049 | 1½ | 5.008 | 80S |
| 60.033 | 3.099 | 2 | 2.077 | 10S |
| 60.033 | 5.052 | 2 | 3.091 | 40S |
| 60.033 | 7.060 | 2 | 5.054 | 80S |
| 60.033 | 11.029 | 2 | 8.0742) | 160 |
| 73.003 | 5.035 | 2½ | 3.005 | 10S |
| 73.003 | 8.077 | 2½ | 5.016 | 40S |
| 73.003 | 11.059 | 2½ | 7.001 | 80S |
| 88.090 | 6.056 | 3 | 3.005 | 10S |
| 88.090 | 11.047 | 3 | 5.049 | 40S |
| 88.090 | 15.051 | 3 | 7.062 | 80S |
| 88.090 | 21.067 | 3 | 11.0132) | 160 |
| 101.060 | 7.053 | 3½ | 3.005 | 10S |
| 101.060 | 13.078 | 3½ | 5.074 | 40S |
| 101.060 | 18.092 | 3½ | 8.008 | 80S |
| 114.030 | 8.050 | 4 | 3.005 | 10S |
| 114.030 | 16.032 | 4 | 6.002 | 40S |
| 114.030 | 22.067 | 4 | 8.056 | 80S |
| 114.030 | 34.005 | 4 | 13.0492) | 160 |
| 141.030 | 22.010 | 5 | 6.055 | 40S |
| 141.030 | 31.044 | 5 | 9.053 | 80S |
| 141.030 | 49.087 | 5 | 15.0882) | 160 |
| 168.028 | 14.004 | 6 | 3.04 | 10S |
| 168.028 | 28.069 | 6 | 7.011 | 40S |
| 168.028 | 43.021 | 6 | 10.097 | 80S |
| 168.028 | 54.075 | 6 | 14.027 | 120 |
| 168.028 | 68.059 | 6 | 18.0262) | 160 |
| 219.008 | 43.020 | 8 | 8.018 | 40S |
| 219.008 | 65.063 | 8 | 12.07 | 80S |
| 219.008 | 91.030 | 8 | 18.023 | 120 |
| 219.008 | 112.097 | 8 | (23.0012) | 160 |
Super Duplex 2507 Seamless Tubing Chemical Formula
| Grade | S32760 | S32750 |
| Mn | 1.00 max | 1.20 max |
| C | 0.05 max | 0.030 max |
| P | 0.030 max | 0.035 max |
| Si | 1.00 max | 0.80 max |
| Cr | 24.00 – 26.00 | 24.00 – 26.00 |
| N | 0.20 – 0.30 | 0.24 – 0.32 |
| S | 0.010 max | 0.020 max |
| Ni | 6.00 – 8.00 | 6.00 – 8.00 |
| Mo | 3.00 – 4.00 | 3.00 – 5.00 |
| Fe | 57.61 min | 58.095 min |
Specific size and thickness are available in 2507 Super Duplex Stainless Steel Tubes at dealer price in India
Alloy 2507 Super Duplex Tubing Equivalent Grades
| WERKSTOFF NR. | STANDARD | UNS |
| 1.4501 | Super Duplex 2507 | S32750 |
| 1.4410 | S32760 |
2507 Super Duplex Stainless Steel Tubes Mechanical Strength
| Density (lb/in 3) | 0.281 |
| Melting Point (°F) | 2460 |
| Density (g/cm 3) | 7.8 |
| Melting Point (°C) | 1350 |
Best Material supplied in following projects
| Density (lb/in 3) | 0.281 |
| Melting Point (°F) | 2460 |
| Density (g/cm 3) | 7.8 |
| Melting Point (°C) | 1350 |
Best Material supplied in following projects
| United Arab Emirates (UAE), Europe, Norway, Romania | S32750 Super Duplex Pickling Passivation Stainless Steel Pipe |
| Chile, Philippines, Iran, Canada | Super Duplex SA789 S31260 Stainless Steel 2507 Pipe |
| Egypt, Malaysia, Mexico, Los Alamos -Mexico | 2507 Super Duplex Stainless Steel Pipe |
| Netherlands, Sweden, Russia, Malaysia | Seamless Tube 1.4410/00cr25ni7mo4n Super Duplex 2507 Uns S32750 Stainless Steel Pipe |
| UK, Dammam -KSA, Poland, Philippines | Inox 2507 / Uns 32750 Super Duplex Stainless Steel Plate Pipe for Chemical Mill |
| United Kingdom -UK, Singapore, Malaysia, NY 12203 (USA) | 2507/32750 Super Duplex Stainless Steel Pipe |
| Malaysia, Czechia, Japan, Thailand | Super Duplex S32750 Saf 2507 Stainless Steel Pipe |
| Singapore, Qatar, Malaysia, Europe | 2507 Uns S32750 Super Duplex Stainless Steel Seamless Pipe |
| Philippines, South Africa, Taiwan, Kuwait | Welded Tube S32750/ Saf 2507 Super Duplex Steel Pipe |
| China, Malaysia, Colombia, Bangladesh | Super Duplex Stainless Steel Square Tube Pipe 2507 |
| Belgium, Philippines, Indonesia, UK | Super Duplex Stainless Steel 2507 Seamless/Welded Pipe Price Per Ton |
| Malaysia, Bahrain, South Korea, Singapore | ASTM A790 Super Duplex Stainless Steel 2507 Welded Pipe Oxidation Resistance |
| Thailand, Oman, France, Hong Kong | Super Duplex 2507 Industrial Stainless Steel Square Pipes |
