Teflon Tube manufacturer in India with -75 °C -100 °F Minimum Operating Temperature, view teflon pipe price
Flexible Fluoropolymer Tubing offers electrical insulation and aids in high service temperature even in corrosive environments. On fiber optics, Polytetrafluoroethylene (PTFE) Flexible Tube is UV resistant and works under high pressure. It can retain delicate fiber optics along with a high degree of flexibility. Flexible PTFE Tube allows multiple channels of fiber optics to be encapsulated. The only disadvantage that needs to be considered while opting for Polytetrafluoroethylene (PTFE) Flexible Tube is that they are not resistant to high energy radiation. This causes the PTFE molecules to break down. They are used in transferring and storing corrosive chemicals.
PTFE Flexible Tubing is also efficient in stopping insects from climbing as well. This is because of the non-stick coating of the tube that the insects are unable to grip. PTFE Flexible Tube is used in applications such as brushing and bearing, electrical and automotive, laboratory, and chemical processes. It works in a broad temperature range. Furthermore, Teflon Flexible Tube is ideal for applications where purity and chemical resistance is essential. We atRADILOK one of the most trusted suppliers of these tubes and provide them at a pocket-friendly price.
Pipes manufactured using different metals and alloys have different applications due to the properties possessed by them. Ptfe Pipe also known as polytetrafluoroethylene or Teflon is one such pipe that is transparent, Ptfe Pipe Manufacturers In India recommend this pipe as it has chemically inert and non-toxic material that offers unmatched chemical resistance. Teflon Pipe is mostly used in low pressure applications with microfluidic fittings due to its flexibility. Ptfe Tube is popular amongst high temperature applications as its melting point is reached at 327 degrees C.
As per Ptfe Tube Manufacturer In India, these pipes carry certain advantages such as they are chemically resistant to corrosion and are structurally strong. Teflon Tube Price is around Rs. 85 per meter. Teflon Pipe Price may differ depending upon the diameter and size offered. Teflon Tube 6mm is said to be long lasting when compared to normal steel and allows smooth flow of chemicals. Teflon Pipe Sizes can be modified as per the requirement of the applications. Teflon coatings are also used to coat cooking utensils so that the food doesn't stick to the utensil thus making it easy to wash the utensil.
Apart from corrosion resistant and non-stick properties, PTFE Pipe Thread Tape is also suitable for applications that have high working temperature and pressure. Thus Ptfe Pipe Tape is used in the oil and gas, and pharmaceutical industries due to this reason. Moreover, they are also used in the food processing and personal health care industry. Teflon Tape also offers permeability resistance. This is because it is produced through a paste extruded method that creates a low void content. This prevents the corrosive substance from permeating through the liner and corroding the metal.
Table Of Content
- ✔Fractional Sizes of Ptfe Extruded Tubing
- ✔Ptfe Tubing Temperature Rating
- ✔Metric Sizes of Black Ptfe Tubing
- ✔Ptfe Sleeving Application
- ✔Physical Properties of Ptfe Convoluted Tubing
- ✔Mechnical Properties of Teflon Sleeving
- ✔Thin Wall Teflon Tubing Electrical Properties
- ✔Thermal Properties of Teflon Pipe
- ✔Packaging of Thin Wall Ptfe Tubing
6mm PTFE tubing Suppliers, Have difficulty to find Flexible PTFE Tubing in tough sizes ? Call RADILOK now
Specification format of Ptfe Teflon Tube
| BRAND NAME | RADILOK |
| TUBING OUTER DIAMETER | 1/8" OD TO 1" OD / 3 MM TO 28 MM |
| TUBING THICKNESS | 0.8 MM TO 2.5 MM |
| CONDITION | ROLL FORM |
| COLOR | MILKY WHITE |
| MATERIAL | VIRGIN PTFE / TEFLON |

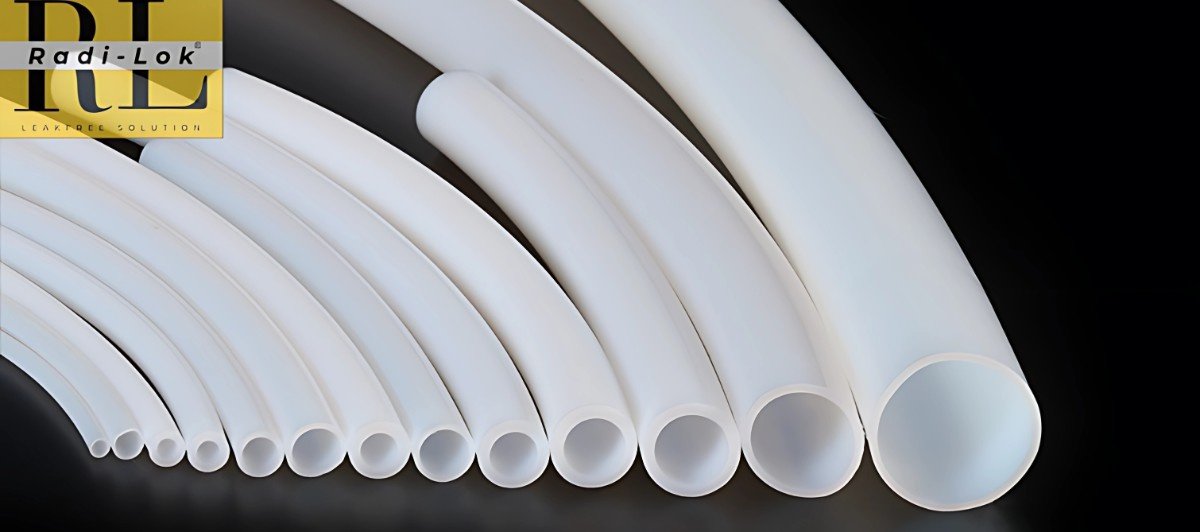

What is PTFE Tubing?
Polytetrafluoroethylene is a material that even at low temperature offers high flexural strength. Ptfe Tubing also possesses the same qualities as the material. It has dielectric strength and is resistant to water. ptfe flexible tube manufacturer in India recommends the tubes produced in this material due to the low coefficient of friction. It is chemically inert in most chemicals and solvents. Teflon Tubing has a melting point of 327 degrees C. Ptfe Flexible Tube are said to be thermally stable within the temperature range of -200 degrees C to 260 degrees C. The tubes are whitish transparent in color.
Supply Parker 4mm/ thin wall PTFE tubing and Sleeving in all sizes and 40 to 390 psi 3 to 27 bar Maximum Operating Pressure
Teflon Tube Price in india
|
Description
|
Price
|
| Transparent Hose PTFE Tube / Tubing | Min. Order: 100 Meters |
| PTFE Tubing for Translucide Transfer Corrosive Fluid Pipe | US $ 10-15 / kg |
| 1.5mm to 12mm Flexible Hose/ PTFE Tube/ PTFE Tubing |
US $ 0.98-1.02 / Meter |
| High Temperature Resistant Extruded PTFE Tubing | US $ 9.5-15 / Piece |
| UL Approval Non-Heat Shrink PTFE Tubing | US $ 0.05-3.69 / Meter |
| PTFE Convoluted Tubing with Stainless Steel 304 Braid |
Min. Order: 200 Sets |
6mm Teflon Tubing Properties & Benefit
| Tubing Benefits | Tubing Properties |
|---|---|
| Effective in high-heat applications | Withstands temperatures of up to 240°C |
| Extensively useful in medical applications | Distinctly inert |
| Suitable for carrying highly corrosive/reactive fluids | High chemical resistance |
| Insulating medium in cables and heavy electricals | Superior dielectric strength |
Flexible Ptfe Tubing Consist Of
- hoses – these are heavy-wall thickness tubes
- Spaghetti tubing – with a wall thickness of within 1.5mm and an outer diameter of less than 15mm
- sleeves – these can be either extruded or compression-moulded.
Size Chart PTFE Heat Shrink Tube
|
P/N
|
OD
|
ID
|
Wall
|
Maximum Pressure @72°F
|
Bend Radius
|
|---|---|---|---|---|---|
|
Standard Sizes
|
|||||
|
062X125
|
1/8″
|
1/16″
|
1/32″
|
300 PSI
|
1/2″
|
|
125X250
|
1/4″
|
1/8″
|
1/16″
|
310 PSI
|
1/2″
|
|
125X187
|
3/16″
|
1/8″
|
1/32″
|
200 PSI
|
3/4″
|
|
170X250
|
.250″
|
.170″
|
.040″
|
200 PSI
|
1″
|
|
187X250
|
1/4″
|
3/16″
|
1/32″
|
150 PSI
|
1″
|
|
187X312
|
5/16″
|
3/16″
|
1/16″
|
contact us
|
contact us
|
|
250X312
|
5/16″
|
1/4″
|
1/32″
|
275 PSI
|
1-3/4″
|
|
250X375
|
3/8″
|
1/4″
|
1/16″
|
207 PSI
|
3/4″
|
|
295X375
|
.375″
|
.295″
|
.040″
|
contact us
|
contact us
|
|
312X375
|
3/8″
|
5/16″
|
1/32″
|
contact us
|
contact us
|
|
375X500
|
1/2″
|
3/8″
|
1/16″
|
155 PSI
|
2-1/2″
|
|
437X500
|
1/2″
|
7/16″
|
1/32″
|
75 PSI
|
6.00″
|
|
Metric Sizes
|
|||||
|
2MMX4MM
|
4MM
|
2MM
|
1MM
|
contact us
|
contact us
|
|
4MMX6MM
|
6MM
|
4MM
|
1MM
|
208 PSI
|
1″
|
|
6MMX8MM
|
8MM
|
6MM
|
1MM
|
125 PSI
|
2″
|
|
10MMX12MM
|
12MM
|
10MM
|
1MM
|
104 PSI
|
4″
|
Key Properties Of PTFE Teflon Tube
- FDA approved
- Properties of PTFE can be improved by adding additives as carbon, graphite, glass etc.
- not hygroscopic (water absorption < 0,01%)
- Working temperature from -190°C to +260°C
- Excellent chemical resistance
- Flame resistant - UL94V0
- No stick
- Greatest resistance to fatigue (Wöhler curve)
- UV-resistant (does not age)
- Low friction
- Very good dielectric dielectric insulation properties
Ptfe Tubing Pressure Rating
|
Size, Fractional
|
Wall Thickness
|
Outside Diameter-OD
|
Tolerance, +/-
|
Tolerance, +/-
|
* Burst Pressure, PSI at 75°F (Spike)
|
||
|
FEP
|
PTFE
|
PFA
|
|||||
|
1/32
|
0.0016
|
0.0031
|
0.0004
|
0.0003
|
1815
|
1513
|
2420
|
|
1/16
|
0.0031
|
0.0063
|
0.0005
|
0.0005
|
1800
|
1500
|
2400
|
|
1/16
|
0.0062
|
0.0063
|
0.0008
|
0.0010
|
2400
|
2000
|
3200
|
|
1/8
|
0.0031
|
0.0125
|
0.0008
|
0.0005
|
1161
|
967
|
1548
|
|
1/8
|
0.0062
|
0.0125
|
0.0008
|
0.0010
|
1800
|
1500
|
2400
|
|
5/32
|
0.0047
|
0.0156
|
0.0008
|
0.0007
|
1315
|
1096
|
1753
|
|
3/16
|
0.0031
|
0.0188
|
0.0008
|
0.0005
|
840
|
700
|
1120
|
|
1/4
|
0.0031
|
0.0250
|
0.0010
|
0.0005
|
659
|
549
|
878
|
|
1/4
|
0.0062
|
0.0250
|
0.0010
|
0.0010
|
1154
|
962
|
1538
|
|
5/16
|
0.0031
|
0.0312
|
0.0010
|
0.0005
|
541
|
451
|
721
|
|
3/8
|
0.0031
|
0.0375
|
0.0010
|
0.0005
|
459
|
382
|
612
|
|
3/8
|
0.0062
|
0.0375
|
0.0010
|
0.0010
|
840
|
700
|
1120
|
|
7/16
|
0.0031
|
0.0438
|
0.0010
|
0.0005
|
398
|
332
|
531
|
|
1/2
|
0.0031
|
0.0500
|
0.0010
|
0.0005
|
352
|
293
|
469
|
|
1/2
|
0.0062
|
0.0500
|
0.0010
|
0.0010
|
659
|
549
|
878
|
|
9/16
|
0.0031
|
0.0562
|
0.0010
|
0.0005
|
315
|
262
|
420
|
|
5/8
|
0.0031
|
0.0625
|
0.0020
|
0.0007
|
285
|
238
|
380
|
|
5/8
|
0.0062
|
0.0625
|
0.0020
|
0.0010
|
541
|
451
|
721
|
|
11/16
|
0.0031
|
0.0688
|
0.0020
|
0.0007
|
260
|
217
|
347
|
|
3/4
|
0.0040
|
0.0750
|
0.0020
|
0.0007
|
303
|
253
|
404
|
|
7/8
|
0.0045
|
0.0875
|
0.0020
|
0.0007
|
293
|
244
|
390
|
|
7/8
|
0.0062
|
0.0875
|
0.0020
|
0.0010
|
398
|
332
|
531
|
|
1
|
0.0045
|
1.0000
|
0.0020
|
0.0007
|
258
|
215
|
344
|
|
1-1/4
|
0.0045
|
1.0250
|
0.0020
|
0.0007
|
208
|
174
|
278
|
|
1-1/2
|
0.0050
|
1.0500
|
0.0020
|
0.0008
|
193
|
161
|
258
|
PTFE tube suppliers, We Guarantee Fastest Delivery of ptfe extruded tubing with All Documents Including Mill Certificate
Fractional Sizes of Ptfe Extruded Tubing
| I.D(in) | OD (in) | Wall (in) | OD Tolerance (in) |
Nominal OD | Minimum Bend Radius (in) |
Working Pressure* PSIG(bar) |
Wall Tolerance (in) |
Burst Pressure+ PSIG(bar) |
| 1/16 | 1/8 | 0.0031 | +/- 0.0004 | 0.0125 | 1/2 | 300 (21) | +/- 0.0003 | 1500 (103) |
| 1/8 | 3/16 | 0.0031 | +/- 0.0005 | 0.0188 | 1/2 | 192 (13) | +/- 0.0003 | 961(66) |
| 3/16 | 1/4 | 0.0031 | +/- 0.0005 | 0.025 | 1 | 140 (9.07) | +/- 0.0003 | 700 (48) |
| 5/32 | 1/4 | 0.0047 | +/- 0.0005 | 0.025 | 3/4 | 219 (15) | +/- 0.0003 | 1095 (75) |
| 1/8 | 1/4 | 0.0062 | +/- 0.0005 | 0.025 | 1/2 | 300 (21) | +/- 0.0003 | 1500 (103) |
| 1/4 | 5/16 | 0.0031 | +/- 0.0005 | 0.0313 | 3/4 | 110 (7.06) | +/- 0.0003 | 549 (38) |
| 3/16 | 5/16 | 0.0062 | +/- 0.0005 | 0.0313 | 1/2 | 235 (16) | +/- 0.0003 | 1176 (81) |
| 5/16 | 3/8 | 0.0031 | +/- 0.0005 | 0.0375 | 2-1/2 | 90 (6.02) | +/- 0.0003 | 450 (31) |
| 1/4 | 3/8 | 0.0062 | +/- 0.0005 | 0.0375 | 1 | 192 (13) | +/- 0.0003 | 962 (66) |
| 7/16 | 1/2 | 0.0031 | +/- 0.0006 | 0.05 | 4 | 66 (4.06) | +/- 0.0003 | 332 (23) |
| 3/8 | 1/2 | 0.0062 | +/- 0.0006 | 0.05 | 2 | 140 (9.07) | +/- 0.0003 | 700 (48) |
Ptfe Tubing Temperature Rating
temperature range of PTFE tubing is -410°F to 500°F.
Metric Sizes of Black Ptfe Tubing
| I.D. (mm) |
O.D. (mm) |
O.D./I.D. Tolerance (mm) |
I.D. (in) |
O.D. (in) |
O.D./I.D. Tolerance (in) |
Burst Pressure+ PSIG(bar) |
Working Pressure* PSIG(bar) |
Minimum Bend Radius (in) |
| 2 | 4 | +/- 0.11 | 0.078 | 0.157 | +/- 0.004 | 1500 (103) | 300 (21) | 1/2 |
| 4 | 6 | +/- 0.13 | 0.157 | 0.236 | +/- 0.005 | 961(66) | 192 (13) | 1/2 |
| 6 | 8 | +/- 0.13 | 0.236 | 0.315 | +/- 0.005 | 700 (48) | 140 (9.7) | 1-3/4 |
| 8 | 10 | +/- 0.13 | 0.315 | 0.393 | +/- 0.005 | 549 (38) | 110 (7.6) | 2-1/2 |
| 10 | 12 | +/- 0.15 | 0.393 | 0.472 | +/- 0.006 | 451 (31) | 90 (6.2) | 3-1/2 |
Are you looking for 4mm ptfe tubing with 500 °F 260 °C Maximum Operating Temperature ? find here teflon tube price
Ptfe Sleeving Application
- Pharmaceutical applications
- Fuel hoses/fuel tubing lines
- Wire harness applications
- High temperature industrial equipment
- Advanced medical devices
- 3D printing equipment
- Chemical and analytical science applications
Physical Properties of Ptfe Convoluted Tubing
| PHYSICAL | ASTM | PTFE |
|---|---|---|
| Water absorption (%) | D570 | 0 |
| Oxygen index (%) | D2863 | >95 |
| Density (g/cc) | D792 | 2.16 - 2.22 |
| Refractive index | 1.35 | |
| Standard percent crystallinity (%) | >90 | |
| Radiation resistance (MRad) | 1 |
Mechnical Properties of Teflon Sleeving
| MECHANICAL | ||
|---|---|---|
| Ultimate tensile strength (MPa) | D638 | 20 - 35 |
| Hardness, Shore D | D2240 | 50 - 65 |
| Coefficient of friction | 0.02 - 0.2 | |
| Modulus of elasticity (GPa) | D638 | 0.39 - 0.6 |
| Elongation at break (%) | D638 | 200 - 550 |
| Flexural Modulus (GPa) | D790 | 0.275 - 0.7 |
Thin Wall Teflon Tubing Electrical Properties
| ELECTRICAL | ||
|---|---|---|
| Dielectric constant 1 MHz | D150 | 2.01 |
| Volume resistivity (Ω-cm) | D257 | 1e14 - 1e19 |
| Dielectric strength (V/mil) | D149 | 189 - 610 |
Thermal Properties of Teflon Pipe
| THERMAL | ||
|---|---|---|
| Maximum service temperature, air (°C) | 260 | |
| Conductivity (W/m-K) | C117 | 0.167 - 0.3 |
| Melt temperature (°C) | 327 - 342 | |
| Minimum service temperature, air (°C) | -200 - -240 | |
| Decomposition temperature (°C) | E1131 | 400 - 500 |
| Glass temperature (°C) | 127 | |
| CTE, linear 20° (µm/m-°C) | D696 | 126 - 180 |
Packaging of Thin Wall Ptfe Tubing
- Clean room packaging
- Continuous coils or precut lengths
- Colors and tracer stripes available
